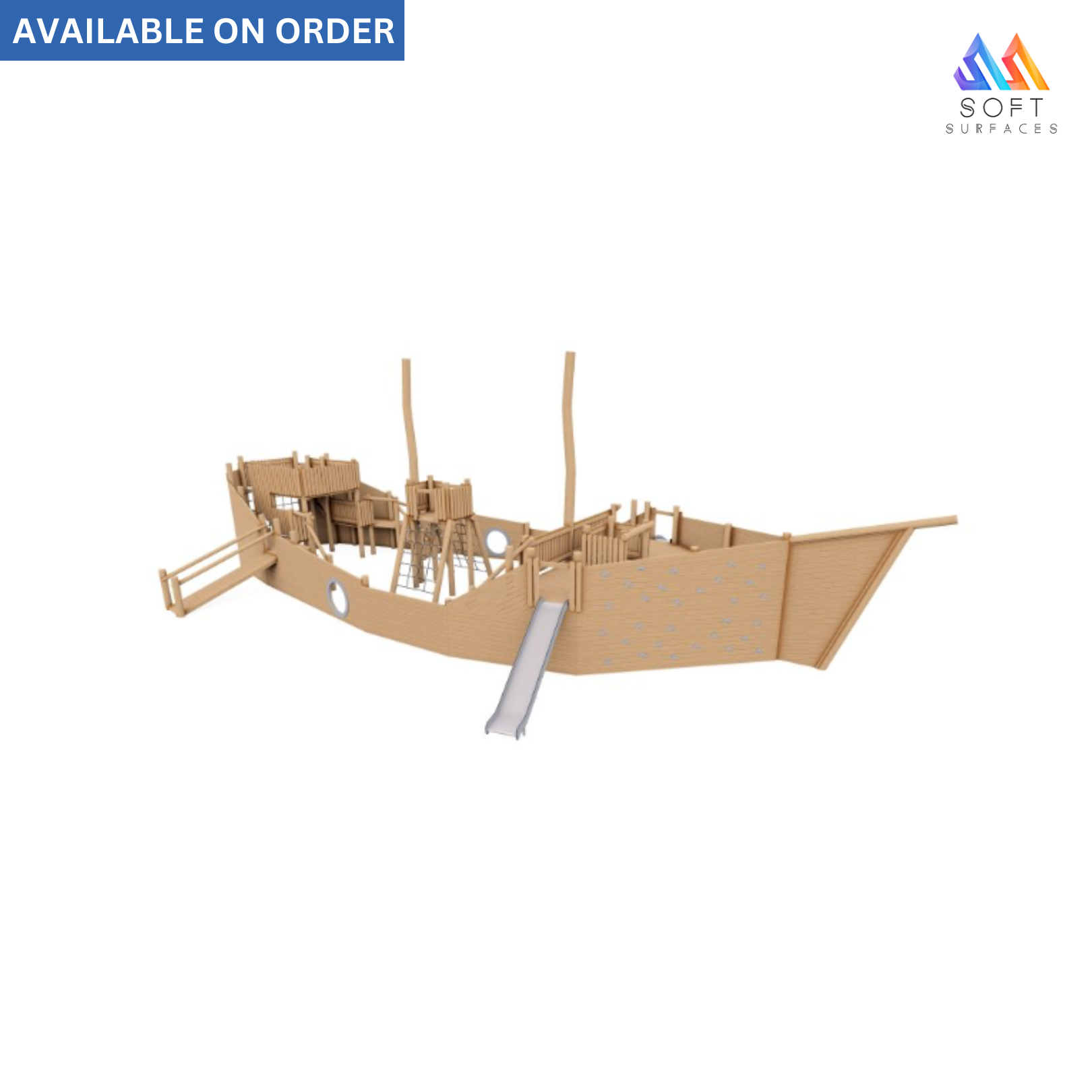

Big ship

Product Specifications (Playground Equipment)

• Number of Users: 30
• Age Group: 5+
• Dimensions: Width 18.75 m | Length 10.00 m | Height 6.00 m
• Minimum Space Required: 22.20 m × 13.55 m
• Free Fall Height: 2.25 m
• Falling Area: 190.90 m²
• Foundation Depth: -0.60 m

 Structural Details

• Structural Legs: Acacia beams, naturally shaped, Ø 140–180 mm, debarked, pulp removed, sandblasted
• Platforms: Acacia wood, peeled, cleaned of pith, sandblasted
• Decorative Applications: HDPE board, 15 mm thick, dyed in mass
• Slide Skid:
• Sides: 15 mm thick HDPE board
• Slide: Stainless steel sheet, AISI304 class, 1.5 mm thick
• Ropes: Multi-strand polypropylene with steel core, Ø 16 mm, connected with polyamide connectors, stainless screws
• Climbing Handles: Resin-based material
• End Caps: Plastic
• Foundations: Concrete, class min. C12/15
